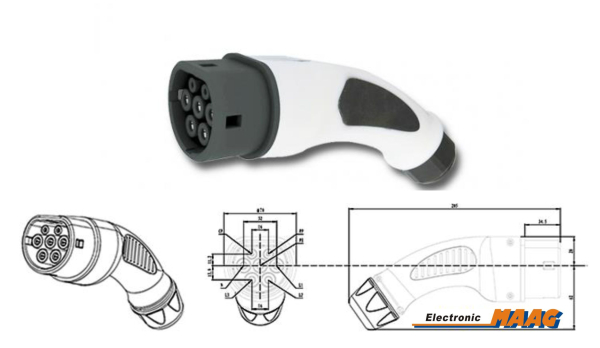

Typ 2 Stecker 16A Plug Ladestecker Female Weiblich Fahrzeugseite Elektroauto

Products Model: BS-EVP001F(16A)
Working Current: 16A
Working Voltage: 240V AC
Certificates: CE, TUV, UL

Passend für alle Fahrzeuge mit Typ 2 Ladeanschluss wie zb.

Tesla Model S X 3, VW E-Golf, E-UP,

Passat GTE Renault Zoe, Smart, Mercedes B Klasse Eletric, BMW I3 I8 usw.

• Ergonomischer Pistolengriff,
• Schutzart IP 44 im gesteckten Zustand.

• Gummierte Schutzkappe
• max.32A, 3-phasig, 240/415V
• Crimpanschlüsse, kann auch gelötet werden

• 3P+N+PE  CP + PP

• IEC 62196-2, Typ 2, Fahrzeugseite (weiblich)
• Inkl. Codier-Widerstand 680 Ohm für 16A

12A IEC 62196-2 (Type2) Female Plug (Charging Station End) For Electric Vehicle Charging

Work for : Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf, etc...


● Cord lenght: Free End, 3m(9.8ft), 5m(16.4ft)

● Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard

● Nice shape and easy to use, protection class IP54(in mated conditions)

Parameters

● Model: BS-EVP001-F (32A)

● Reted current: 32A

● Working voltage: 240V AC

● Insulation resistance: > 1000M Ω

● Terminal temperature rise: <50K

● Withstand voltage: 2000V

● Contact impedance: 0.5m Ω Max

● Vibration resistance: Meet JDQ 53.3 requirements

● Working temperature: -30°C ~+ 50°C

● CE, TUV approved


Charging Cable Spec

● TUV 3*6.0mm2+2*0.5mm2

● Cord lenght: Free End, 3m(9.8ft), 5m(16.4ft)


● Orange or Black

Materials

● Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

● Contact Pin: Copper alloy, silver or nickel plating

● Sealing gasket: rubber or silicon rubber

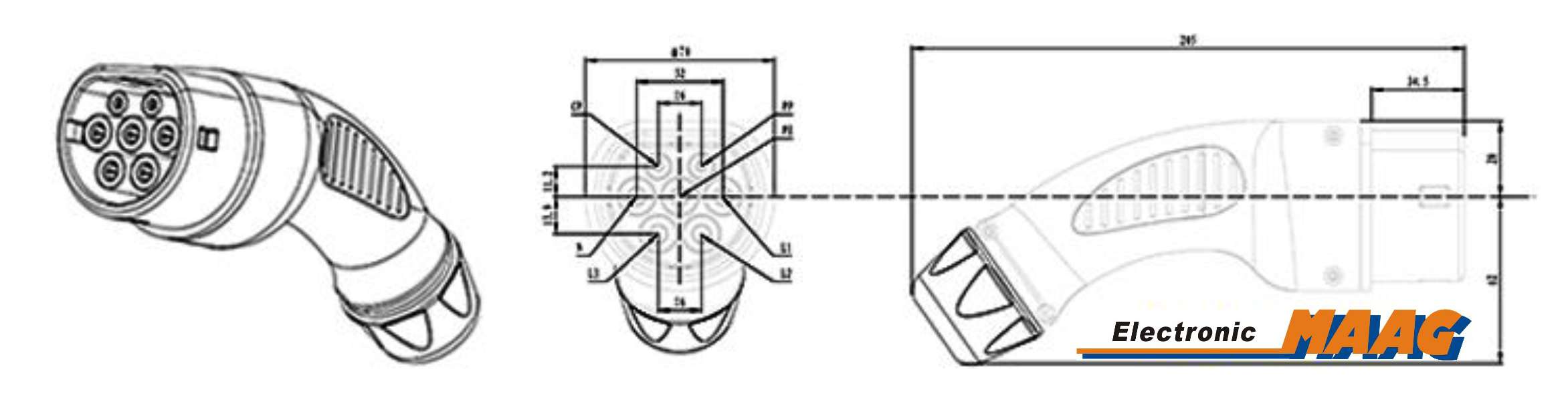

Insert arrangements and functional definition
